Only the power supply needs to be connected. No cables from the monitor to the camera needed.

No additional cable connections needed when connecting a trailer.

No interference due to digital video transmission.

Monitor – Integrated speaker.

Camera – Integrated microphone.

Trigger inputs to control the displayed image by the vehicle automatically.

Integrated heater to prevent fog and snow on the lens.

Recordings are available in case of an accident.

Easy pairing by one push button.

Supports Micro-SD cards up to 256GB.

Quad-View shows up to 4 camera images simultaneously.

Monitor

LCD Size	7“
Resolution	1024 x 600
Aspect Ratio	16:9
LCD Panel	IPS
Video Format	1080p			720p		CVBS
Video System	PAL				NTSC
Frame Rate	25 fps				30 fps
Channels	4 CH
Multiview	Quad
Brightness	600 cd/m²
Contrast	600:1
Viewing Angle	U: 85°, D: 85°, L: 85°, R: 85°
Touchscreen	No
Speaker	Yes
Automatic Dimming	Yes
Guide Lines	optional
Picture Modes	Normal	Mirror			Flip			Mirror + Flip
Trigger Wires	5
Trigger Delay	optional
Remote Control	No
OSD Languages	English, German, Spanish, Italian, French, Portuguese
Frequency Range	2403MHz-2478MHz
max. Range (Barrier Free)	FCC: 300 m		CE: 200 m				MIC: 100 m
Transmission Power	FCC: ≤26dBm		CE: ≤20dBm				MIC: ≤10dBm
Receiving Sensitivity	-78dBm
Video Codec	H.264
RF Bit Rate	max. 12 Mbps
Modulation	FHSS
Delay	max. 200 ms
Operating Voltage	10-32 VDC
Current @12 VDC	Monitor: MAX300 mA
Power Consumption	max. 3.6W
Operating Temperature	-20°C - +70°C
Storage Temperature	-40°C - +80°C
Dimensions	211 mm x 149 mm x 55 mm (with Bracket and Sun Shield)
Weight	643g
IP Protection Class	IP30
Vibration Resistant	5 G
Shock Resistant	7 G
Mounting Options	Center Bracket			U-Bracket		100x100
Material	ABS, Metal
Color	Black
Cable Length	30 cm
Wire Harness	detachable
Cable Diameter	5.0 mm
Monitor Connector	8 Pin
Monitor Connector Diameter	8 mm
min. Bending Radius	5 x Cable Diameter

Camera

Resolution	1920x1080
Megapixel	2 MP
Video Format	1080p
Sensor Type	CMOS
Sensor Manufacturer	GalaxyCore
Sensor Size	1/2.9 inch
Sensing Area	5.59 mm x 3.1 mm
Pixel Size	2.8 µm x 2.8µm
Frame Rate	25 fps		30 fps
Scanning System	Progressive Scan
Shutter Mode	Rolling Shutter
S/N Ratio	>52 dB
Dynamic Range	81dB
AWB	Auto
AGC	Auto
BLC	Auto
Frequency Range	2403MHz-2478MHz
max. Range (Barrier Free)	FCC: 300 m	CE: 200 m		MIC: 100 m
Transmission Power	FCC: ≤26dBm	CE: ≤20dBm		MIC: ≤10dBm
Receiving Sensitivity	-78dBm
Video Codec	H.264
RF Bit Rate	max. 12 Mbps
Modulation	FHSS
Delay	max. 200 ms
Focal Length	2.8 mm
Aperture	f / 2.3
Focus	Fixed
Field of View (FOV)	120°(D) x 105°(H) x 60°(V)
Operating Voltage	10-32 VDC
Current @12 VDC	Normal: 185 mA, IR: +100 mA
Power Consumption	max. 3.5 W
Operating Temperature	-30°C - +70°C
Storage Temperature	-40°C - +80°C
IR-LED	Yes
IR Wavelength	850 nm
Night Vision Distance	10 – 15 m
IR-Cut	Dual Filter Switch ( Auto)
Minimum Illumination	0 Lux
Audio	Yes
Heater	No
Image Mode	Mirror
Dimensions	109.2 mm x 95.7 mm x 72.1 mm (with Bracket and Sun Shield)
Weight	450g
IP Protection Class	IP69K
Vibration Resistant	5.9 G
Shock Resistant	10 G
Material	Aluminum, Glass, Stainless Steel
Color	Black
Cable Length	30 cm
Cable Diameter	5.0 mm
min. Bending Radius	5 x Cable Diameter
Connector Type	Barrel Connector (5.5 mm / 2.1 mm) incl. Adapter with open ends
Connector Diameter	14 mm

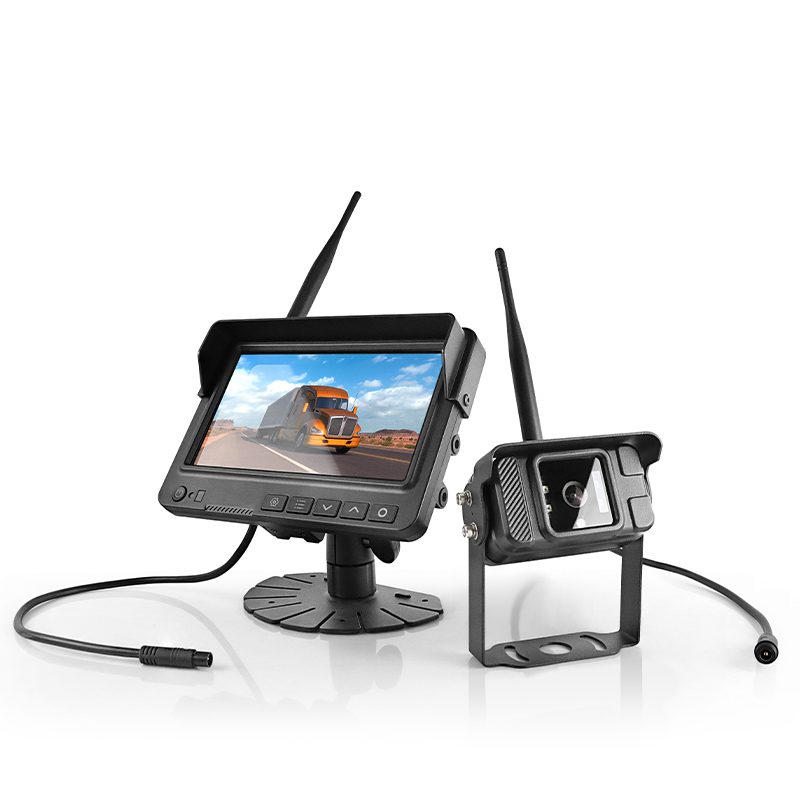

7’’ Digital Wireless HD Backup Camera System with Night Vision Camera TVH2403
