1. Why Every Commercial Fleet Needs a Heavy Duty Rearview Camera

Operating heavy commercial vehicles, such as semi-trucks, articulated trailers, dump trucks, and agricultural harvesters, presents unique safety challenges. According to global road safety studies published by the National Highway Traffic Safety Administration (NHTSA), commercial vehicle blind spots account for thousands of preventable collisions annually. Rear blind spots are particularly dangerous during maneuvering, reversing, and hitching operations in congested loading docks or farmyards.

Standard passenger vehicle cameras simply cannot withstand the harsh physical demands of commercial transport. Dust, mud, gravel impacts, engine vibrations, high-pressure pressure washing, and extreme ambient temperatures will quickly destroy consumer-grade hardware. Installing a dedicated heavy duty rearview camera ensures uninterrupted situational awareness, drastically reducing vehicle downtime, maintenance overhead, and liability risks.

Implementing an advanced heavy duty rearview camera provides key operational benefits:

• Complete Blind Spot Elimination: Expands the driver’s visual scope around wide trailers and elevated vehicle beds.
• Reduced Collision Damage: Prevents costly dock strikes, equipment impacts, and property damage during tight reversals.
• Enhanced Worker Safety: Protects ground personnel and pedestrians operating near heavy machinery.
• Optimized Operating Efficiency: Speeds up docking, trailer coupling, and field harvesting cycles.

2. Introducing the CC0201 Bee Camera by The VisionHouse

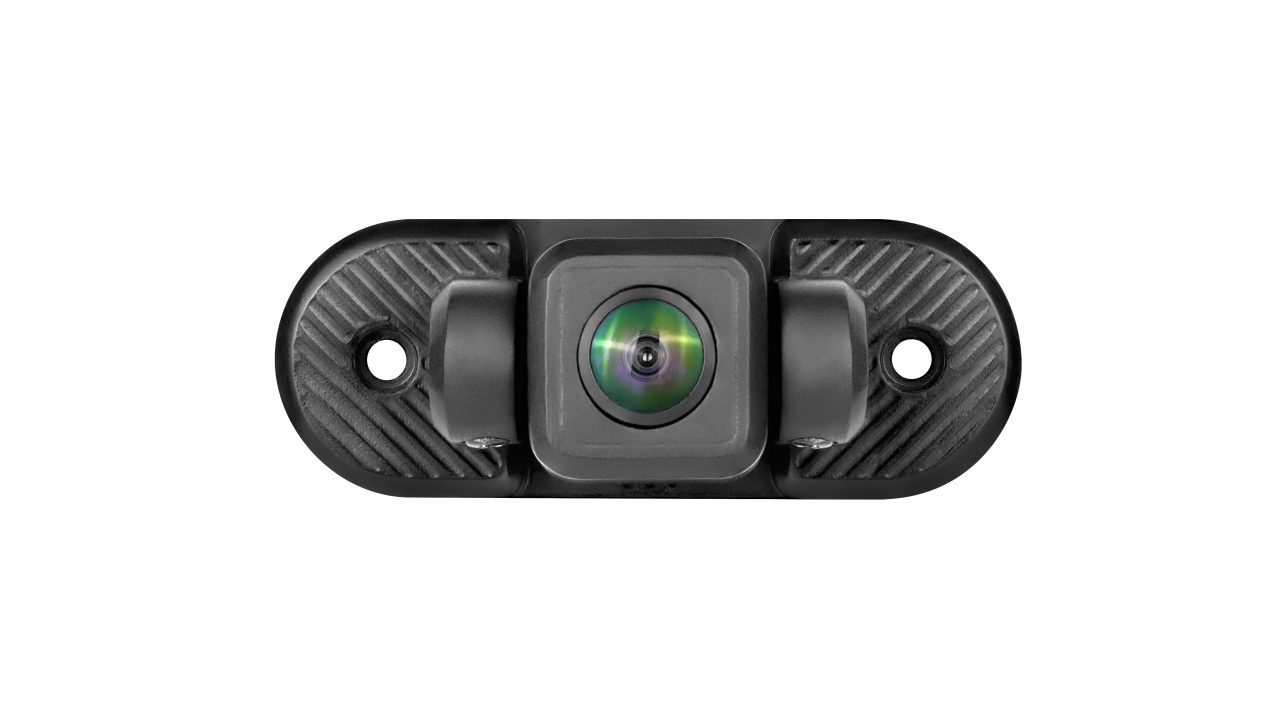

The VisionHouse (TVH), officially operated by Guangzhou VisionHouse Technology Co., Ltd. (Learn more about our company), is a premier OEM/ODM manufacturer specializing in high-reliability vision systems for commercial transport. Model CC0201, affectionately nicknamed the “Bee Camera” due to its streamlined twin-ear mounting bracket design, represents our latest achievement in vehicle vision engineering.

Designed specifically for heavy trucks, trailers, agricultural harvesters, and specialized industrial equipment, the CC0201 heavy duty rearview camera combines ultra-compact aesthetics with extreme ruggedness. Engineered under strict ISO quality management frameworks, this camera delivers uncompromised 1080p AHD video performance under the most punishing operational environments on earth.

3. Key Features of the CC0201 Heavy Duty Rearview Camera

When selecting a vision solution for heavy-duty fleets, hardware specs dictate long-term performance. The CC0201 heavy duty rearview camera integrates state-of-the-art optical components, die-cast metal alloys, and weatherproofing technologies into a compact footprint measuring just 82.4 mm x 32.4 mm x 38.9 mm.

3.1 Ultra-Wide 156° Field of View for Maximum Coverage

Narrow camera angles force fleet operators to compromise between close-up hitch views and long-distance perimeter awareness. The CC0201 heavy duty rearview camera solves this challenge with a high-precision wide-angle optical lens system:

• Horizontal FOV: 156°
• Diagonal FOV: 175°
• Vertical FOV: 80°

This 156-degree horizontal view captures the entire rear width of standard commercial trailers, eliminating side rear blind zones without creating severe optical fish-eye distortion.

3.2 IP69K Ingress Protection & All-Weather Durability

Commercial vehicle washes utilize intense water pressure jets operating at elevated temperatures. The CC0201 heavy duty rearview camera carries an official IP69K rating—the highest level of protection defined by the International Electrotechnical Commission (IEC standard 60529) and ISO 20653 standards.

This rating certifies that the camera is completely dust-tight and resistant to close-range, high-pressure (up to 10 MPa / 100 bar), and high-temperature (up to 80°C) water steam jet washdowns. Whether operating in dusty agricultural fields during harvest or through icy winter highways sprayed with road salt, the CC0201 remains completely sealed.

3.3 High-Definition AHD 1080p Optical Performance

Equipped with a premium 1/2.9-inch CMOS image sensor manufactured by GalaxyCore, the CC0201 heavy duty rearview camera outputs native Analog High Definition (AHD) 1080p video (1920×1080 pixels) at 25 fps / 30 fps. Key optical technologies include:

• Anti-Reflection Lens Coating: Specialized optical multi-layer coating eliminates internal reflections, ghosting, and hot spots caused by direct sunlight or trailing vehicle headlights.
• Low Light Sensitivity: Features a low minimum illumination threshold of 0.01 Lux, allowing clear visual recognition during dusk, dawn, and dim loading bay conditions.
• Automated Image Processing: Built-in Auto White Balance (AWB), Auto Gain Control (AGC), and Backlight Compensation (BLC) deliver balanced exposure across dynamic outdoor environments.
• Wide Dynamic Range (WDR): An impressive 81 dB dynamic range ensures crisp contrast between shaded trailer undersides and brightly lit horizons.

3.4 Heavy-Duty Shock and Vibration Resistance

Agricultural machinery and off-road heavy haulers subject mounted electronics to continuous violent vibration. The CC0201 heavy duty rearview camera is built with a rugged die-cast aluminum housing, stainless steel mounting hardware, and robust internal PCB dampening.

Rigorous factory compliance testing certifies that the CC0201 handles sustained 5.9G vibration loads and up to 10G structural shock impacts, ensuring long service life under heavy farm tillage or rough haul-road transit.

4. Technical Specifications Breakdown

To assist fleet managers, vehicle bodybuilders, and system integrators, the detailed engineering specifications for the CC0201 heavy duty rearview camera are summarized in the table below:

Explore our complementary range of vehicle display monitors and cabling infrastructure in our Commercial Vehicle Products Catalog.

5. Engineering & Structural Excellence: The Exploded Design

The durability of the CC0201 heavy duty rearview camera lies in its meticulous structural architecture. Developed by TVH’s senior industrial and mechanical engineering team, every component is engineered for harsh environmental resilience.

Key structural components include:

1. Die-Cast Aluminum Front Cover & Back Housing: Provides a rigid protective shield against mechanical stones, branches, and debris.
2. Precision O-Ring & Fluororubber Sealing Gaskets: Dual silicone and fluororubber seals line the lens assembly and back cover, creating an impenetrable waterproof barrier.
3. 304 Stainless Steel Angle Adjusting Screws: Corrosion-resistant M4 and M3 hardware allows technicians to loosen the bracket, adjust the vertical tilt angle down toward the bumper or hitch, and lock it firmly into position.
4. M-Series 4-Pin Aviation Cable Exit: Reinforced strain relief strain ring and oil-resistant 4.0mm cable jacket ensure signal integrity under repeated bending and flexing.

6. Applications Across Commercial Vehicles & Heavy Machinery

The versatile mounting profile and wide-voltage operational tolerance (10-32V DC) make the CC0201 heavy duty rearview camera an ideal safety upgrade across multiple industries.

6.1 Heavy Trucks and Logistics Trailers

Long-haul semi-trucks, box trucks, and articulated trailers benefit from mounting the CC0201 at the upper rear edge. Tilting the camera downwards creates a complete bird’s-eye view of the rear step and hitch, permitting millimeter-precise backing into enclosed loading docks.

6.2 Agricultural Equipment and Tractors

Modern precision farming relies on giant combines, forage harvesters, and tractors towing wide grain carts. Dusty harvesting conditions quickly blind inferior cameras. The IP69K sealed CC0201 heavy duty rearview camera mounts effortlessly to combine augers or tractor drawbars, giving operators an unobstructed view of grain tank filling and implement coupling.

6.3 Construction and Mining Machinery

Dump trucks, wheel loaders, and road rollers operate in dirty, high-vibration quarry and construction sites. With 5.9G vibration resistance and a 10G shock threshold, the CC0201 delivers real-time rear clearance monitoring to protect site workers and surrounding machinery.

7. Step-by-Step Installation & Wiring Guide

Installing the CC0201 heavy duty rearview camera is fast and straightforward. Follow these steps to ensure optimal performance and long-term waterproof integrity:

1. Select Mounting Position: Choose a solid structural position near the top rear or bumper area of the vehicle. Ensure the lens has an unobstructed sightline.
2. Secure the Base Bracket: Use the two included stainless steel mounting screws to attach the base bracket flat against the vehicle chassis.
3. Connect the 4-Pin Aviation Cable: Plug the 4-pin male connector into your extension cable leading to the cockpit monitor. Hand-tighten the threaded metal lock nut on the connector to form an airtight, waterproof seal. Pull the protective rubber sleeve over the joint.
4. Wire Cable Pinout: Standard M-Series pin assignments:
   • Pin 1 (Red): +12VDC Power Supply Input
   • Pin 2 (Black + Shield): Ground (GND)
   • Pin 3 (White): Audio Signal (Optional / Unused on CC0201)
   • Pin 4 (Yellow): AHD 1080p Video Signal Output
5. Adjust Vertical Angle: Loosen the twin side fixing screws on the camera body. Tilt the lens upward or downward to capture the desired rear horizon or hitch zone. Securely retighten the screws.

8. Why Partner with The VisionHouse (TVH)?

Selecting a supplier for commercial fleet electronics requires a manufacturer with proven engineering expertise and reliable global distribution. The VisionHouse (TVH) stands out as a leading global partner in commercial vehicle safety systems:

• International Compliance Standards: Our products meet rigorous global regulatory certifications, including E-Mark (E57), CE, UKCA, RoHS, and ISO automotive quality standards.
• End-to-End In-House R&D: From industrial design (ID) and mechanical engineering to electronic circuit layout and firmware programming, TVH controls every step of product creation.
• OEM / ODM Customization: We offer customized housing colors, custom wire harness lengths, specialized optical lens configurations, and private branding options for vehicle manufacturers and fleet distributors.
• Rigorous Testing Protocols: Every batch undergoes thermal shock testing (-40°C to +80°C), salt spray corrosion tests, 3D vibration bench tests, and 100% water immersion verification prior to packaging.

Discover more about our manufacturing capabilities and quality guarantees on our Company Profile Page.

9. Frequently Asked Questions (FAQ)

10. Conclusion & Request a Quote

Upgrading your commercial fleet with the CC0201 heavy duty rearview camera is a strategic investment in operational efficiency, accident prevention, and driver confidence. With crisp 1080p AHD clarity, 156° wide coverage, IP69K waterproof armor, and proven 5.9G shock resistance, TVH delivers vehicle vision solutions built for the long haul.

Are you a commercial fleet owner, vehicle manufacturer (OEM), or distributor interested in wholesale pricing or custom sample testing? Contact our international sales team today to request a custom quote and technical consultation!
