Heavy Duty Vehicle Camera CC0103 technology is revolutionizing commercial transport safety. Designed specifically for trucks, trailers, agricultural machinery, and heavy industrial fleets, the 55mm spherical CC0103 camera eliminates dangerous blind spots while enduring the harshest working conditions on the planet.

Operating heavy commercial vehicles presents unique navigational challenges. Blind spots surrounding large trucks, agricultural harvesters, and construction equipment lead to thousands of preventable accidents each year. Installing a high-performance vision monitoring system is no longer optional—it is a vital operational necessity. The Heavy Duty Vehicle Camera CC0103 offers full 360-degree orientation flexibility, crystal-clear AHD 1080P video resolution, and rugged IP69K weatherproofing to guarantee complete peace of mind.

1. Product Overview: Heavy Duty Vehicle Camera CC0103

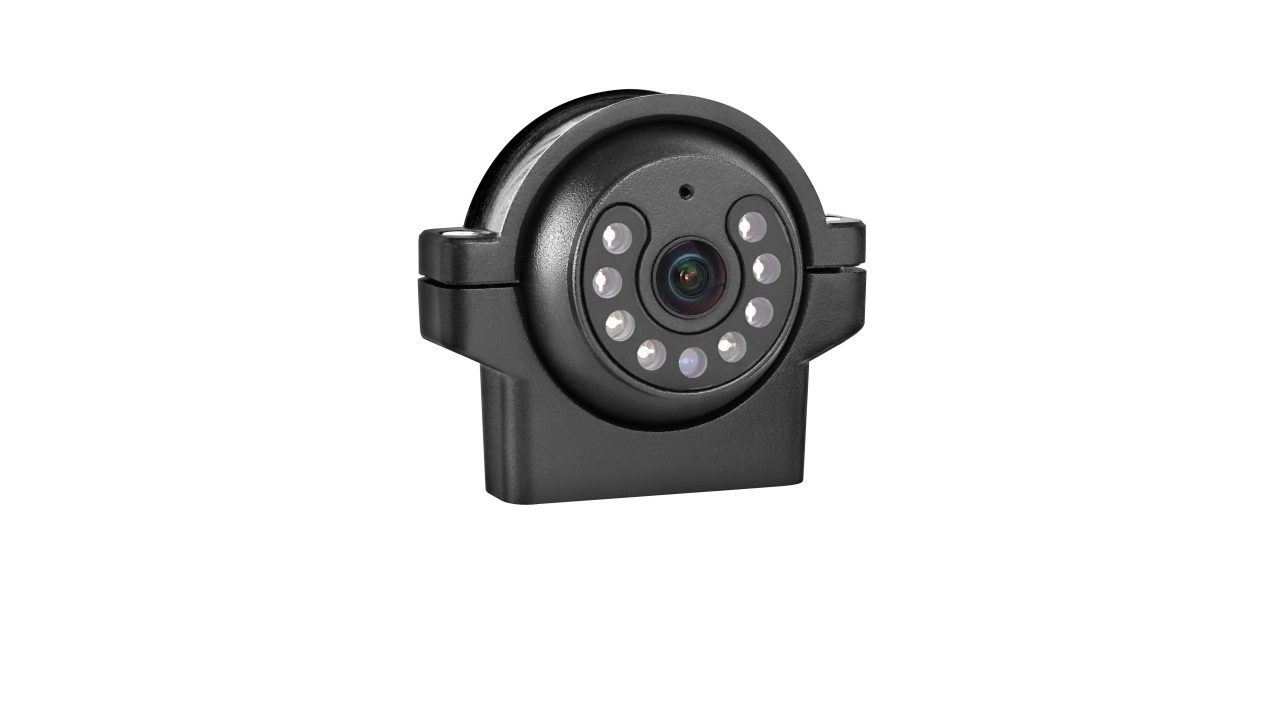

The Heavy Duty Vehicle Camera CC0103 represents the pinnacle of commercial vehicle vision engineering. Crafted by leading industrial and structural designers, model CC0103 is a 55mm spherical wired camera created specifically to operate in demanding environments.

Equipped with a high-definition AHD 1080P CMOS sensor, the CC0103 delivers ultra-sharp video output directly to fleet monitors. Whether deployed on long-haul freight trucks, heavy machinery in mining sites, or agricultural tractors operating through dense dust, this compact device ensures drivers maintain uninterrupted awareness around their vehicles.

Explore our complete vehicle vision safety systems to discover how our camera lineup integrates seamlessly with modern commercial monitors.

2. Key Features and Standout Advantages

Choosing the right monitoring equipment for commercial fleets requires selecting hardware built for longevity and uncompromised picture accuracy. The Heavy Duty Vehicle Camera CC0103 brings together several engineering breakthroughs:

Ultra-Wide 135° Horizontal Viewing Angle

Eliminating blind spots requires a broad field of view. The CC0103 features an expansive 135° horizontal optical angle (160° diagonal), capturing wide perimeter scenes behind or beside large commercial chassis. Lens anti-reflection coatings prevent bright hot spots from obscuring critical picture detail.

Robust Die-Cast Aluminum Housing

Unlike standard plastic consumer cameras, the Heavy Duty Vehicle Camera CC0103 is built inside a high-strength die-cast aluminum alloy shell. Combined with stainless steel hardware and glass optics, this camera withstands harsh environmental wear and severe operational abuse.

Complete 360-Degree Spherical Rotation

The innovative ring bracket housing allows the internal 55mm spherical camera unit to rotate freely in any direction. Installers can adjust the camera lens forward, backward, left, right, or upside down while maintaining ideal image alignment.

3. Detailed Technical Specifications

For fleet managers and technical engineers, precision specifications dictate performance under real-world stress. Below is the complete specification matrix for the Heavy Duty Vehicle Camera CC0103:

4. Flexible Multi-Angle Installation & Mounting

Standard rear-view cameras often suffer from strict mounting limitations. The Heavy Duty Vehicle Camera CC0103 solves this problem with an ultra-flexible ring bracket mechanism.

The ring bracket clamps securely onto the inner 55mm spherical camera body. By loosening two hex tensioning bolts, drivers or technicians can effortlessly tilt, swivel, or invert the camera sphere. This enables versatile mounting orientations including:

• Forward Standard Mounting: Perfect for front-bumper tracking and road surveillance.
• Inverted Ceiling Mounting: Ideal for mounting under trailer roofs, cab overhangs, or container lips.
• Left and Right Flank Mounting: Great for side-mirror replacements or monitoring wide blind zones alongside long chassis.
• Angled Corner Mounting: Tailored for specialized agricultural harvesters and heavy construction machinery arms.

5. Advanced Infrared Night Vision & Audio Performance

Commercial transport does not stop when night falls. Driving through unlit rural roads, midnight highways, or dark agricultural fields requires exceptional visual guidance.

Integrated Dual Filter IR-Cut Switching

The Heavy Duty Vehicle Camera CC0103 incorporates high-power 850 nm IR LEDs and an automatic light sensor. When ambient light drops below optimal operational thresholds, the built-in dual filter switch engages night mode automatically. The system seamlessly switches to high-contrast black-and-white video output to maximize image sharpness in zero-light conditions (0 Lux) up to 15 meters away.

High-Fidelity Audio Monitoring

Visual feedback is only half the battle. The CC0103 includes an integrated microphone to transmit real-time ambient noise to the driver cabin. Spotters guiding a reversing truck or ground workers near operating machinery can communicate verbally with the driver, substantially reducing accidental damage risks.

6. Extreme Durability: IP69K Waterproofing & Shock Resistance

Industrial working environments expose vehicle hardware to extreme mechanical stresses. The Heavy Duty Vehicle Camera CC0103 is engineered to outperform standard automotive cameras under harsh environmental pressures.

Learn more about official ingress standards on the ISO Protection Degrees Standard Page.

IP69K Highest Waterproof Rating

The IP69K ingress protection standard represents the highest rating achievable for electronic equipment. The CC0103 camera body is entirely sealed against dust, mud, sand, and fine particles. Furthermore, it tolerates close-range, high-pressure, high-temperature power washings during routine commercial vehicle maintenance without water ingress.

5.9G Vibration and 10G Shock Resistance

Heavy machinery and agricultural tractors generate high continuous vibration during daily field operation[cite: 8]. The CC0103 features reinforced internal circuit mountings, silicon sealing gaskets, and heavy-duty stainless steel bolts. Rated to endure 5.9G vibration and 10G impact shocks, this camera maintains unbroken video feeds across uneven terrain.

7. Commercial Fleet Applications

Because of its adaptive form factor, the Heavy Duty Vehicle Camera CC0103 serves a wide range of commercial transportation sectors:

• Heavy Freight Trucks & Semi-Trailers: Provides crystal-clear rear vision during complex loading dock maneuvers.
• Agricultural Machinery: Mounted on harvesters, tractors, and grain carts to monitor grain collection bins and hitch points.
• Mining & Construction Equipment: Protects large dump trucks and excavators operating within congested job sites.
• Municipal Vehicles: Increases operator awareness on garbage trucks, road sweepers, and snowplows operating in busy urban streets.

8. Wiring and Installation Guide

Setting up the Heavy Duty Vehicle Camera CC0103 is straightforward thanks to its standardized automotive cabling. The unit features a 4-Pin M-Series waterproof aviation connector designed to lock securely against vibration.

4-Pin Aviation Cable Connector Pinout

When connecting the CC0103 to extension harnesses or monitor units, follow the standardized pin layout:

• Pin 1 (Red Wire): +12V DC Power Supply
• Pin 2 (Black Wire + Shield): Ground (GND) Connection
• Pin 3 (White Wire): Audio Signal Output
• Pin 4 (Yellow Wire): AHD Video Signal Output

Installation Tip: Always securely hand-tighten the threaded coupling nut on the 4-pin aviation connector and pull the protective rubber sleeve over the junction to ensure complete waterproof integrity. For further setup instructions, visit our support knowledge base.

9. Maintenance and Troubleshooting

To keep your Heavy Duty Vehicle Camera CC0103 operating at maximum performance, inspect physical connections periodically during routine vehicle service. Clean the front glass optical lens using a mild detergent and a soft cloth. Avoid aggressive solvents like thinner or benzine, as these can damage protective lens coatings.

Quick Troubleshooting Table

10. Why Choose TVH VisionHouse Solutions

At TVH VisionHouse, we build industrial-grade fleet safety solutions designed to excel under real-world pressures. The Heavy Duty Vehicle Camera CC0103 combines high-definition AHD imaging, ultra-rugged die-cast metal hardware, versatile 360-degree installation, and IP69K weatherproofing to deliver unmatched reliability.

Protect your drivers, secure your equipment, and streamline your fleet operations today. Contact our technical sales team at lesley.lau@tvhsignal.com or visit our official portal at www.tvhsignal.com to request a quote or learn more!
